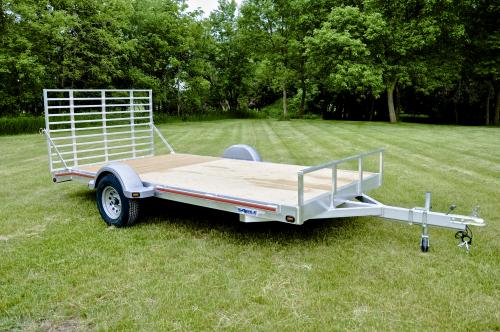

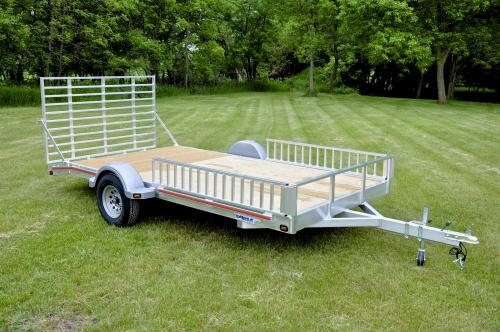

Heavy Single Axle Utility Trailers - 3.5K

AUV30-14

Model: AUV30-14

GVWR: 2,990 lbs.

Main Frame: 2" x 6" Aluminum Tube

Deck Dimensions: 80" X 168" (12'+2' Dove Tail)

Axle: 3.5K Torsion EZ-Lube

Brakes: No

Tires: ST205/14" Radials

Wheels: Silver E-Coated /5-4.5

Decking: 3/4" Marine Plywood

Frame Rail: 12" Front Rail Only

Side Features: Rub Rail with Stake Pockets

Cross-Members: 24" on Center

Loading Ramp: 3' Rear Ramp

Lighting: "LED" Sealed Beam

Wiring System: Custom Harness

Security Connection: Safety Cables

Jack Stand: Front Swivel w/Wheel

Hitch Mount: 2" Ball / Coupler

Overall Width: 102" (Outside Fenders)

Brake Option: Yes -Electric 10"

Wheel Upgrade: Aluminum /5-4.5

Decking Upgrade: Aluminum Plank

Ramp Option: 4' Rear Ramp

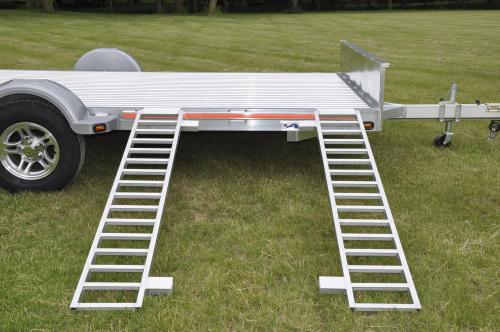

Side Accessories: IR Side Ramps (2)-12" X 72"

Deck Accessories: Motorcycle Wheel Chocks

Cargo Security: D-Rings

Cargo Protection: ATP Stone Guard

Spare Tire Carrier: Standard or Custom Heavy
