Snowmobile Trailers

AXTR-12

2-Place / Tilt-Bed V-Front Trailer w/ Eagle America Drive-Off Ramp Shield

Model: AXTR-12

GVWR: 2,200 lbs.

Main Frame: 2-Place / Tilt-Bed V-Front w/ Shield

Deck Dimensions: 101.5" x 12'+ V-Front

Axle: 2.2K Torsion EZ-Lube

Brakes: No

Tires: 20.5-10 LRC

Wheels: Silver E-Coated/5-4.5

Decking: 3/4" Marine Plywood

Frame Rail: Eagle America Custom Extrusion

Side Features: (see Exclusive Feature)

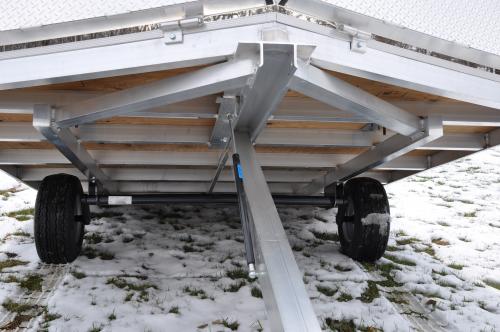

Cross-Members: 24" on Center /2" X 3" Aluminum Tube

Lighting: "LED" Sealed Beam

Wiring System: Custom Harness / 4-Flat

Security Connection: Safety Cables

Jack Stand: Yes- Front Swivel w/ Wheel

Hitch Mount: 2" Ball / Coupler

Deck Equipment: (2) Tie-Downs Bars w/ Sleeves

Trailer Equipment: 250 lb. Gas Shock

Overall Width: 102" w/ Exclusive Feature

Exclusive Feature: Use of Optional Side Accessories

Side Accessories: Eagle America Side Tie-Downs (or) Stake Pockets

Spare Tire Carrier: U-Bolt Style
