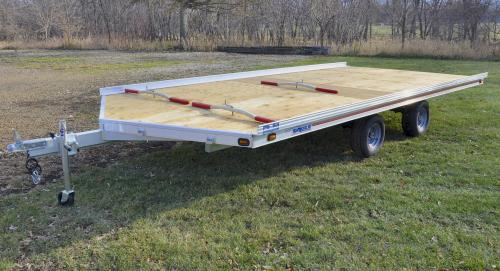

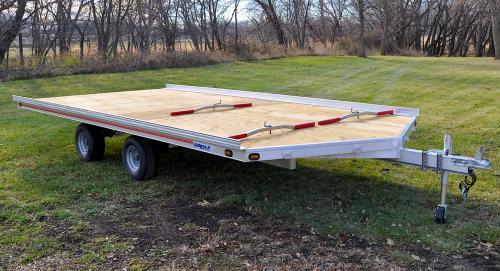

AX14

Model: AX14

GVWR: 2,990 lbs.

Main Frame: 3-Place / V-Front

Deck Dimensions: 101.5" x 14'+ V-Front

Axle: (2) 2.2K Torsion EZ-Lube

Brakes: No

Tires: 20.5-10 LRC

Wheels: Silver E-Coated/5-4.5

Decking: 3/4" Marine Plywood

Frame Rail: Eagle America Custom Extrusion

Side Features: (See Exclusive Feature)

Cross-Members: 24" on Center /2" X 3" Aluminum Tube

Loading Ramp: 5' Ramp (Front or Rear Use)

Lighting: "LED" Sealed Beam

Wiring System: Custom Harness / 4-Flat

Security Connection: Safety Cables

Jack Stand: Yes- Front Swivel w/ Wheel

Hitch Mount: 2" Ball / Coupler

Deck Equipment: (3) Tie-Downs Bars w/ Sleeves

Overall Width: 102" w/ Exclusive Feature

Frame Feature: Reflective Logo & Stripe

Ramp Dimensions: 52" W x 60" L

Exclusive Feature: Use of Optional Side Accessories

Brake Option: Yes- Electric (or) Hydraulic Surge

Tire Upgrade: ST175/80R13-LRC

Wheel Upgrade: Aluminum /5-4.5

Side Accessories: Eagle America Side Tie-Downs (or) Stake Pockets

Accessories: Eagle America V-Front Drive Off Shield

Spare Tire Carrier: U-Bolt Style
